NCB-250/150H – Condensing Combi-Boiler – 250,000 BTU DHW / 210,000 BTU HTG
Description

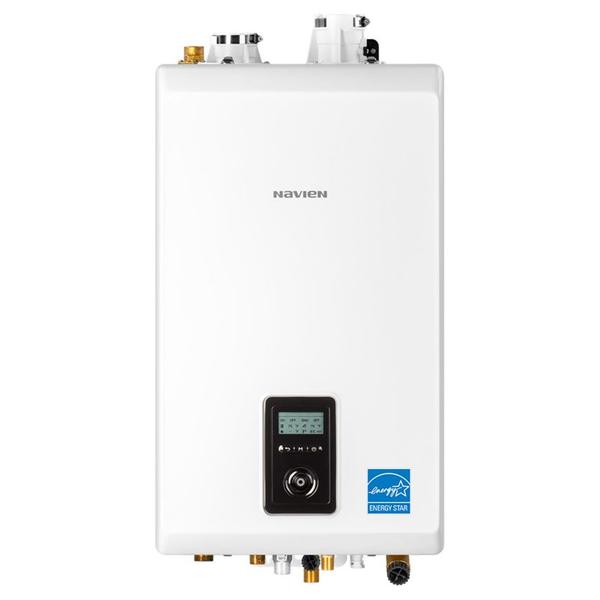

Navien NCB-250/150H – Condensing Combi-Boiler – 250,000 BTU DHW / 210,000 BTU HTG
The Navien NCB-250/150H is a 95% AFUE condensing combi-boiler that combines powerful space heating and on-demand domestic hot water in a single wall-hung unit. With a maximum input of 150,000 BTU/hr and a net AHRI rating of 120,000 BTU/hr, this unit delivers efficient performance for larger residential applications. It offers a 11.1:1 turndown ratio for heating and a 15:1 ratio for hot water, providing responsive modulation based on system demand.
The NCB-250/150H is field convertible from natural gas to propane and supports a range of venting materials including PVC, CPVC, polypropylene, and stainless steel. It also features compatibility with Navien’s NaviLink smart home controller for remote access and monitoring.
Features:
- 95% AFUE high-efficiency rating
- 150,000 BTU/hr heating input
- 120,000 BTU/hr net AHRI rating
- 11.1:1 turndown ratio for space heating
- 15:1 turndown ratio for domestic hot water
- Field convertible between natural gas and propane
- Smart controls with NaviLink compatibility
- Energy Star certified
- Compact wall-mounted design
- Compatible with 2″ or 3″ venting (PVC, CPVC, polypropylene, stainless steel)
Applications:
- Whole-home space heating and domestic hot water
- Medium to large residential homes
- Indoor installations with venting flexibility
- Natural gas or propane systems
- Retrofits and new construction
- Smart home integration with NaviLink controller
Aim high with Navien…
High efficiency, High output, High performance, all in one compact combi
- Highest DHW maximum BTU’s in residential combi-boilers…up to 210,000 per hour
- Highest DHW flow rate @ 70°F rise…up to 5.4 GPM
- Highest number of BTU sizes for the North American residential combi-boiler market
- Highest residential combi DHW TDR…15:1 for all models
- Highest residential combi heating TDR… up to 11:1
- Highest number of built-in zone controls for valves or pumps… up to three
- Highest full lineup 2″ PVC venting lengths… up to 65 feet
- Highest number of cascade capable units with NPE tankless water heaters… up to 15
- High altitude certification… up to 10,100 feet (NG or LP)
- Lowest minimum fire BTU for residential combi-boilers… as low as 10,700
New Navien NCB-H…the complete combi package and no comprimises
Navien’s innovation and technological advancements have done it again. The new NCB-H is taking combi performance to the highest levels. As the competition tries to get closer, Navien ingenuity keeps advancing their lead.
COMPARE these advantages and see why NCB-H combis are the right fit for small and large homes
|
Durable stainless steel heat exchangers resist corrosion, resulting in longer life and improved heat recovery from flue gases for superior efficiency. |
Separate stainless steel flat plate heat exchanger for DHW creates the lightest flow rates for any combi-boiler in the industry. |
Dual Venturi system creates better combustion control and turndown ratio. Orifice conversion kit for easy field gas convertibility from NG to LP is included with every NCB-H Series combi-boiler. |
|
All components of DHW module including water feed valve, flow adjustment valve, mixing valve and 3-way valve are right behind circuit board for easy serviceability. |
Installations in or near media rooms, recreation rooms or any living areas of the house are possible with the quiet running NCB-H combi-boilers. |
The sophisticated gas flow control system provides a high turndown ratio, reducing energy waste and excessive boiler cycling and enhances temperature control for DHW. |
Dual Stainless SteelHeat ExchangerDesigned for exceptionalheating performance and longevityHeating up to150,000BTUs per hour |  |
Built-in DHW module now with
higher performance
Navien’s NCB-H generates enough hot water to run up to 3 showers and a dishwasher at the same time.
Expanded DHW Capability
For increased domestic hot water flow demand, the NCB-H can be cascaded and common vented with up to 15 NPE tankless water heaters
